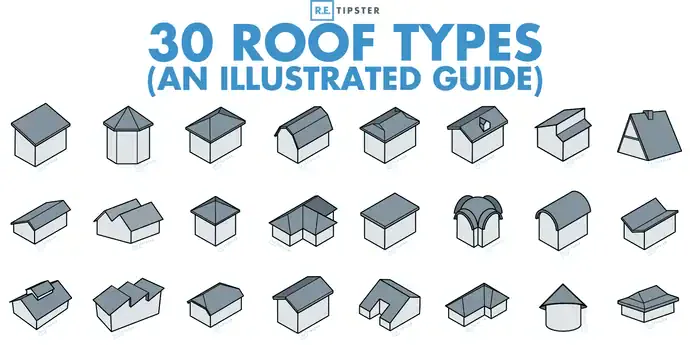

30 roof types infographic
  • foreclosure 728x90 gif
  • pandadoc 728x90
  • carrot ad

If you've ever traveled outside of your own neighborhood, you've probably seen many different types of roofs on the buildings around you.

Every roof is designed with a specific set of benefits in mind. These benefits are often related to the climate and environment in the area where they're built. While some roof types are much more common than others, every roof type has an ideal purpose and use, whether it's because of its simplicity, cost-effectiveness, or functionality.

As you continue scrolling down this page, you're going to see all the most common (and not-so-common) roof types throughout the world. You'll also see a helpful illustrated guide and real-life photographic examples of each one, so you can visualize how they look, understand what purpose they serve, and why these roof types are more common in certain parts of the world.

1. A-Frame Roof

A-Frame_RoofAn A-frame roof has a steeply-angled (roofline) that typically functions as both the roof and two of the four exterior walls. The roof will usually begin at or near the foundation and join together at the top in a way that resembles the letter “A.” An A-frame ceiling can be open to the top rafters.

The A-frame roof is a simple and less expensive roof design because the roof serves as both roof and walls.

A-frame roofs can be found around the world, most notably in Europe, North America, China, and the South Pacific islands, such as the Maori community meeting house called marae.

a-frame roof examples

A-frame homes have been around for centuries, but they experienced a surge in popularity in the 1950s. As the design gained popularity, Macy's department stores started to sell it as part of their Leisurama homes, further reducing the cost.


2. Barrel-Vaulted Roof

Barrel_Vaulted_RoofBarrel-vaulted or barrel roofs have a curved roof that resembles a barrel cut in half. They are designed with a similar purpose to a dome roof, but their primary advantage over dome roofs is that they can cover longer, rectangular buildings.

Barrel roofs are commonly used in the design of factories and other industrial buildings that cover large sections of land. They are often made of metal but can also be made of traditional asphalt shingles.

barrel vault roof

A barrel vault is the simplest type of vaulted roof, with a curved, often semi-circular cross-section and a semi-cylindrical appearance that can span long distances. In cases where windows are installed along a building's roof, barrel-vaulted ceilings can be beneficial in allowing the maximum amount of light into a building and additional height that would not otherwise be available in other roof types.


3. Bell Roof

Bell_RoofAs its name suggests, a bell roof is a roof resembling a bell. This roofing type often comes in different forms, such as round, square, and multi-sided.

Because of its classic appearance, a bell roof is typically found on various vintage-looking structures, including Colonial-era churches and schools and classic homes such as Tudor, Victorian, Queen Anne, and Edwardian homes.

Bell roofs can be used along with similar-sounding features like bell-cast, sprocketed, or flared eaves, highlighting the roof flairs and making them look more like the bottom of a bell.

bell roof examples


4. Box Gable Roof

Box_Gable_RoofBox gable roofs are distinguishable by their triangular extensions at each face of the house, with the roof boxed at the end. This roofing type resembles a regular gable roof, but the triangular extensions are closed off instead of left open. Box gables have a more pronounced triangular shape than regular gable roofs.

As with other gable roofing types, box gable roofs can be covered with almost any roofing material, such as asphalt shingles, concrete tiles, cedar shakes, and metal panels. Additionally, they can be used in common architectural styles, particularly American Colonial, Cottage, and Craftsman homes.

box gable roof examples


5. Butterfly Roof

Butterfly_RoofA butterfly roof generally comprises two tandem pieces that meet midway and are angled up in a V-shape. This gives the effect of a butterfly’s wings in flight when seen from the exterior, making it a good choice for modern and contemporary homes. Not all butterfly roofs need their two pieces to meet midway physically; the only thing they need is for the two pieces to slope inward at a midpoint.

Butterfly roofs are ideal for homes in arid or desert climates, mainly because their central valley allows rainwater to be collected easily. Butterfly roofs are also suitable for a modern aesthetic and homes that can take advantage of natural lighting, as the outer edges of the “butterfly” can accommodate larger windows, such as floor-to-ceiling windows.

Due to their unique design, however, butterfly roofs can be difficult and expensive to maintain. If you're looking for smaller, cost-effective upgrades to your existing roof, check out our list of home upgrades under $1,000.

butterfly roof examples


6. Clerestory Roof

Clerestory_RoofA clerestory roof has two sloping sides joined by a short, vertical wall. The slope typically falls outward, which means the peak is somewhere near the middle of the roof. Its most prominent feature is the clerestory (hence the name)—a row of even, horizontal windows (or one long, continuous window) on the exposed face of the vertical wall.

This type of roof can either be symmetrical or asymmetrical, which can resemble a skillion roof and can have a hipped or gable design. Often found on Craftsman, Ranch, and other similar-looking home styles, clerestory roofs allow abundant sunlight into a home through their windows. As a result, the room stays well-lit even during winter.

Clerestories have been used since ancient Egypt but have become a defining characteristic of Gothic cathedrals.

clerestory roof example

Image: Ben Chun


7. Combination Roof

Combination_RoofCombination roofs are, quite literally, a blend of various roofing styles based on the building's theme and environment. There is no limit on how many types this roof can incorporate or which ones can be combined. For instance, it could be multiple gable roofs together with a hip roof over the front porch or a hip roof paired with a clerestory roof for a distinct look.

Due to their unique architectural appeal, combination roofs are well-suited to modern and contemporary homes. Note, however, that the biggest risk of combining different roofing styles is creating more valleys, which can lead to leak-prone areas. Therefore, this roof may use more material and labor than other roof types.

A popular example of this kind of roof is the iconic shape of the Pizza Hut Red Roof, as seen below.


8. Conical Roof

Conical_RoofAlso known as a cone roof, witch’s hat, or turret roof, a conical roof is round on a flat pane and rises to a point, forming a cone shape. Like other common roofing styles, such as gable and hip roofs, conical roofs also have roof rafters and support columns. However, they are usually shaped unusually and cut at different angles to match the cone form. Some conical roofs project out of the wall to form eaves around the usually circular tower or structure.

This roofing type is often found on top of towers in medieval castles and fortifications, usually paired with battlements and parapets for increased visibility and presence. Eastern European church architecture, particularly Armenian and Georgian, extensively uses conical roofs.

conical roof examples


9. Cross-Hipped Roof

Cross_Hipped_RoofCross-hipped roofs (or cross-hip) are some of the most popular variations of the standard hip roof design, which can be thought of as two hip roofs joined together at a right angle. These are most often laid over buildings in a T or L shape. Cross-hipped roofs come with two intersecting hip sections that run perpendicular to one another. The seam forms the cross-hipped roof, and the two sections meet at the end, forming a valley.

These roofs are great for structures with a more complex layout than the usual rectangular or square and can withstand rain, snow, and high winds incredibly well, thanks to their aerodynamic profile. Like many hip roof types, cross-hipped roofs can accommodate a gutter system well. They were popular in the 19th century and later incorporated into Ranch-style homes in America.

cross hipped roof examples


10. Curved Roof

Curved_RoofOften used as an alternative to a flat roofing system, a curved roof is usually attached to a taller exterior wall. It forms an arch that can go from a low slope to a more rounded peak, allowing for water runoff while adding value to architectural interest. A curved roof can be used for various home features, such as an addition or wing, an arched entrance, or an entire building. Due to its natural bent shape, this roofing type often requires a flexible metal material.

A curved roof was first seen in the 1920s as covering for barn sheds, which allowed farmers to maximize hay storage in their barn lofts. As a result, many curved roof barns became popular in the Midwest. Curved roofs called Quonset huts were even adopted during World War II to house barracks, medical facilities, mess halls, and more.

curved roof examples


11. Dome Roof

Dome_RoofDome roofs are polygonal and characterized by an inverted bowl shape. While relatively costlier than other alternatives, they are extremely durable and perfect for specific home features like gazebos or cupolas. When planned and designed properly, they can also be used as the main roof of a building.

Metals, shingles, and glass are some of the most common materials used for the construction of dome roofs. Metal requires the least maintenance, making it the top choice for this roof type. Some historical domed buildings, like Santorini's blue-domed churches, serve a practical and aesthetic purpose.

dome roof examples


12. Domed Vault Roof

Domed_Vault_RoofThis is a variation of the dome roof but with a few differences. The domed vault has self-supporting arches, adding drama and visual interest to the structure. Domed vault roofs shed water easily, which is why they are great for areas with a lot of precipitation. Most architects, however, choose them primarily due to their aesthetic appeal.

Domed vault roofs are rarely installed on houses. Instead, they are often used on large structures such as cathedrals and museums due to their Old-World charm and grandiose design.

domed vault roof examples


13. Dormer Roof

Dormer_RoofA dormer roof is not an entirely separate type of roof, but it takes its name from a dormer or a windowed structure that projects vertically from a sloping roof. The roof that covers this window is called a dormer roof. Dormers are used to make attic spaces livable, which would otherwise be dark and cramped.

Dormers can also significantly enhance a house's aesthetics, often looking like the “eyes” of the home. They come in a wide range of forms, including gable dormer, hip roof dormer, flat roof dormer, and wall dormer. Most of the time, the materials used on a dormer roof are similar to those used on the main roof.

dormer roof examples


14. Dropped Eaves Roof

Dropped_Eaves_RoofDropped eaves roofs have two slopes at the center, much like a saltbox roof. Their slanting side on the front has steep eaves, hence their name. This slope results in rooms with slanted ceilings, increasing its appeal among many homeowners. At the same time, it also helps direct water efficiently to the gutters and downspouts, preventing standing water that could damage the roof materials.

Dropped eaves roofs are often covered in shingles and are typically seen in many traditional homes across the United States.

RELATED: Interactive Siding and Roof Color Combination Tool


15. Dutch Gable Roof

Dutch_Gable_RoofA Dutch gable combines a hip roof and a gable roof—it practically uses two roofs in one dwelling. It uses a hip roof as “base” over which a smaller gable roof sits in the center. As a result, it increases attic space, but it also makes bracing the structure for storms and wind uplift, not to mention guttering, more complicated.

Since a standard hip roof makes the attic look and feel cramped, the gable roof makes up for it by offering a comparatively more spacious room inside. Meanwhile, the hip structure provides more durability and strength, resulting in better weather resistance for the entire roofing system.

A similar structure can be found in East Asian hip-and-gable roofs, particularly in Chinese and Japanese Buddhist temples.

dutch gable roof examples


16. Flat Roof

Flat_RoofWhile they look flat from the outside, flat roofs are not exactly flat—they have a slight incline to prevent water from collecting on the top. The National Roofing Contractors Association considers a roof with a slope of 3-in-12 or less a flat roof.

Flat roofs are mainly used on commercial buildings due to their simplicity and practicality, although many contemporary homes now use flat roof styles. Depending on how the roof will be used, some materials commonly used for flat roofing systems are modified bitumen, TPO, EPDM rubber, and spray polyurethane foam. For example, commercial establishments that use their roofs for restaurants or additional tenant space may use materials more suited for foot traffic, such as EPDM.

However, flat roofs can experience significant heat loss, especially if not properly insulated. In uninsulated homes, up to 25% of thermal transmission can occur through the roof, making insulation crucial for maintaining energy efficiency and comfort. Adding roof insulation is therefore a smart upgrade for flat roofs, like we've written about in our 10 Energy-Efficient Remodeling Ideas guide.

flat roof examples


17. Gable Roof

Gable_RoofAlso known as peaked or pitched roofs, gable roofs are some of the most common roofing types seen in many homes worldwide. Due to their typical triangular or inverted “V” shape, they are easily identifiable. Many homeowners prefer them mainly because they shed water and snow easily, allow for more attic ventilation, and are cheaper and easier to build than other roofing types. Gable roofs can be covered with virtually any material, including asphalt shingles, slate, concrete tiles, and metal.

Gable roofs can also be combined with other roofing types and come in other subtypes. However, one downside is that they're prone to storm damage, especially if there is a significant overhang.

gable roof examples


18. Gambrel Roof

Gambrel_RoofA gambrel roof is like a gable roof, but only if you add another slope to its lower edges. A gambrel's lower slope has a much steeper pitch, while the upper side has a gentler one.

Gambrel roofs are often described as “barn roofs” because they are often seen on top of barns, farmhouses, and log cabins. However, they can also be used in many traditional homes, including Georgian and Dutch Colonial. Due to their shape, they help provide more storage within a building.

Asphalt shingles, slate, and metal are some of the most widely used materials for this type of roofing. The simpler construction also allows the gambrel roof to use only two roof beams, making the roof vulnerable to immense stress in strong winds.

gambrel roof examples


19. Hexagonal Roof

Hexagonal_RoofHexagonal roofs are, essentially, roofs with six sides that slope downward. Due to their unique and polygonal structure, these roofs are unsuitable for every residential or commercial building. They are mainly used to improve a structure’s aesthetic appeal rather than utility.

Pavilions, cabanas, and gazebos are some of the most common structures that use hexagonal roofs. While hexagonal roofs can be covered with any material, asphalt shingles and clay tiles are usually the go-to options.

hexagonal roof examples


20. Hip and Valley Roof

Hip_and_Valley_RoofPut simply, this is a type of roof that has both hips and valleys. Many residential properties in the U.S. are covered with a hip-and-valley roof, mainly because of its aesthetic benefits. Compared with roofs with a single shape, this roofing type has numerous dips and peaks, adding a dramatic touch and accent to any structure.

A hip-and-valley roof is standard among many Colonial structures and pre-20th-century houses. Nowadays, it is also used in various modern homes.

hip and valley roof examples


21. Hip Roof

Hip_RoofUnlike regular gable roofs that do not have sloping structures on two sides of the building, hip roofs have slopes on all four sides. These sides are all equal in size and join at the top, forming a ridge. This design makes them more structurally stable than gable roofs.

Due to the inward slope on all sides, hip roofs are often sturdier and more durable than their gable counterparts. They are great for areas prone to high winds and snow, as the slant of their slopes enables the snow to slide off easily. Hip roofs can be covered with any type of roofing material, including shingles and tiles, and can be modified to include dormers or crow's nests.

hip roof examples


22. Jerkinhead Roof

Jerkinhead_RoofJerkinhead roofs combine two of the most popular roofing types: gable and hip. However, unlike Dutch gable, which is a fusion of both types, jerkinhead roofs are huge gables topped with a flattened, clipped edge, similar to a hip roof.

Jerkinhead roofs offer more attic space and greater wind stability than a standard hip roof. Note that this roofing type has a complicated design, making it more expensive to build than a standard gable or hip roof. This roof type's name likely owes its name to the Scottish word “kirk-head,” which means “church roof,” suggesting that this was used as the roof of choice for old Scottish churches or places of worship.

jerkinhead roof examples


23. M-Shaped Roof

M-Shaped_RoofAn M-shaped roof is a double gable roof. The roof rests on two bearing walls with two sloped sides that meet at the center, forming an “M” shape.

Unlike standard roofing types with only gutters around the edges, M-shape roofs have a central gutter system that runs between the two pitches, preventing snow and water from building up during the winter. Commonly used in American homes, these roofs can be covered with most materials available on the market, including asphalt shingles, metal, and tiles.

However, even with specialized flashing and a gutter system in these valleys, they can still be prone to leaks. This is why we suggest landlords set aside 10% of their gross rent revenue to cover maintenance and repairs, especially if you have a roof like this. For a real-world application of the realities of running a rental property, including roof repair and maintenance, check out The Beginner’s Guide to Buying Rental Properties (A Case Study).

m shaped roof example


24. Mansard Roof

Mansard_RoofLike the gambrel roof, mansard roofs have two different slopes on the sides of each roof. But while the gambrel only has two sides, a mansard roof has four, which makes it an analog to a hip roof (as the gambrel is to a gable).

In a mansard roof, the lower slope is much steeper than the upper, and all sides can be flat or curved, depending on the building’s architectural style. The lower, steeper slope can be used as additional floor space, known as a garret, and can be punctuated with dormers.

This roof's distinct French aesthetic is thanks to Francois Mansart, who lent his name to the style in the French Baroque period. Unique materials such as copper and zinc metals complement this equally unique roofing type.

mansard roof examples


25. Monitor Roof

Monitor_RoofA monitor roof is a raised superstructure that runs along the ridge of a double-pitched roof. With its long sides, property owners can install clerestory windows or louvers to help boost lighting and air circulation within a building.

Monitor roofs that run the full length of a building are uncommon on residential properties; instead, they are commonly found in warehouses, barns, and factories, where maximizing additional light from windows at a greater height can be useful. Clerestories built this way can also accommodate vents. Most of the time, the materials covering the main roof are also used on these monitor structures.

monitor roof examples


26. Pyramid Hip Roof

Pyramid_Hip_RoofAs its name implies, a pyramid hip roof takes the shape of a pyramid and is constructed on top of a square or rectangular base. It features four triangular sides like a standard hip roof, but instead of forming a ridge at the center, the sides of a pyramid hip roof converge at a single point, which means it doesn't have the same ridge as a standard hip roof.

This type of roof is suitable for small structures like cabins and bungalows or small sections of the home, such as garages and pool houses.

pyramid roof examples


27. Saltbox Roof

Saltbox_RoofA saltbox roof is known for its asymmetrical shape, which resembles antique wooden saltboxes from the 1700s. It features two slopes of varying lengths, with one much longer than the other. An easier visual representation would be to look at it like a gable roof but with one side shorter than the other. The slope may be different on each side.

Because of its sloped structure, water runs off easily on this roof, making it ideal for areas that receive heavy rains. Buildings with this type usually have two stories on one side and one story on the opposite.

Saltbox roofs were introduced in the 17th and 18th centuries to provide more interior space and cover Colonial and Cape Cod homes.  They were so-called because of the salt storage boxes common in Colonial kitchens.

saltbox roof examples


28. Sawtooth Roof

Sawtooth_RoofA sawtooth roof comprises a series of ridges with double pitches on each side. They have numerous parallel planes that resemble a saw’s teeth, with one slope looking steeper than the other one. Windows are often installed in the vertical spaces of the roof, allowing plenty of natural light to pass through.

Sawtooth roofs are commonly used on large commercial and industrial buildings but can also be seen in many modern houses today. Depending on the building’s architectural style, this type of roof can be made from steel, wood, or concrete.

sawtooth roof


29. Shed Roof

Shed_RoofShed roofs have a single slope that inclines at a certain angle. This roofing type is common among many contemporary homes primarily because it offers more interior space than the more popular gable and hip roofs, all while maintaining a simple, sophisticated appearance.

Other structures that use shed roofs include animal sheds, outhouses, and storage barns. Due to the steep incline, rubber skins and roofing membranes are ideal for this type of roof. For a more streamlined look, property owners can choose standing seam materials to go with it.


30. Skillion Roof

Skillion roofs are similar to a shed roof in that they both have a single flat surface with a steep and noticeable pitch. However, unlike the latter, skillion roofs can come in numerous planes—for example, the butterfly roof, with an inverted “V” shape, is known as a variation of the skillion roof.

Skillions add a modern touch to any architecture, which is why many homeowners choose this roofing type. They are an excellent choice for buildings in rainy and snowy regions, as their steep slope allows water and snow to shed quickly.

Roof Type Knowledge Through the Roof!

The world of roofs is diverse and fascinating. It reflects cultural heritage, environmental adaptation, and architectural innovation. From the simple A-frame to the modern Skillion, each design serves a unique purpose and tells its own story.

Understanding these roof types enhances our appreciation of the structures around us. It reveals the ingenuity of human design and the myriad possibilities in architectural choices. Next time you're out, look up—you'll see a world of architectural marvels, each roof playing its part in shaping our built environment.

Now, if you're looking not just at roofs but also at making them tenant-proof, check out our guide on TENANT PROOF: How to Make Your Rentals Indestructible.

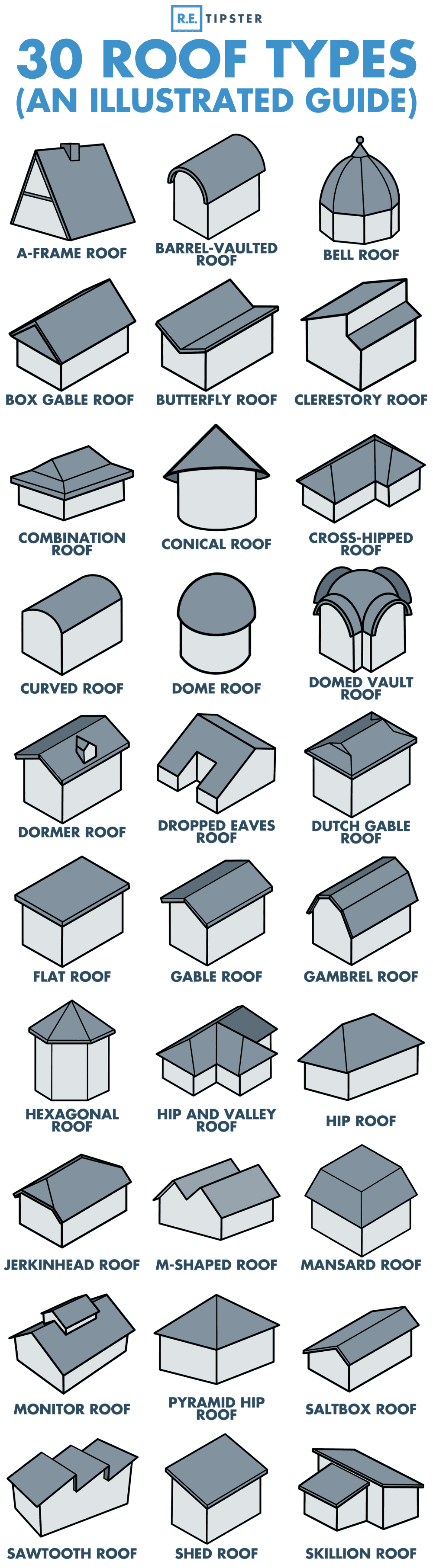

30 Roof Types and Styles (A Helpful Illustrated Guide)
